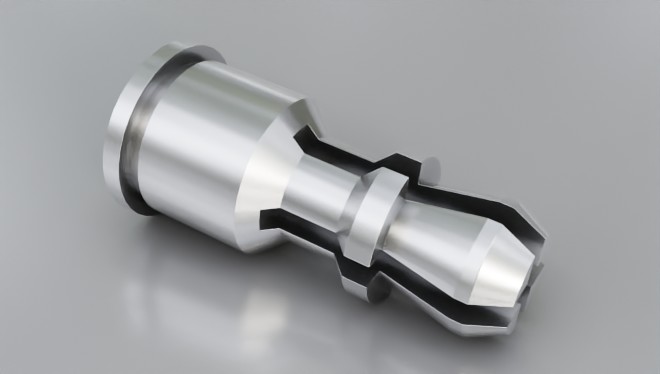

Type: SF-SSS or SF-SSC or SF-SSA

SF-SSS/SF-SSC/SF-SSA

Lengths

8/10/12/14/16/18/20/22/25

Material Code

Steel/zinc = SF-SSS
Stainless steel = SF-SSC
Aluminium = SF-SSA

How to order

Type + Mounting Hole Dia. + Length
Example: SF-SSS-4-8 or SF-SSC-4-12

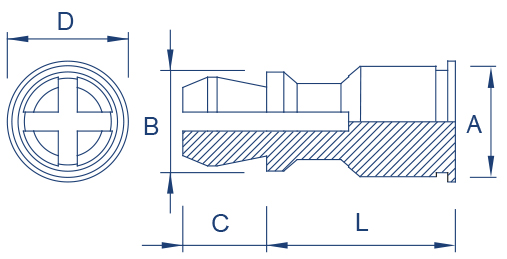

Top Panel
Mounting
Hole Dia.
mm		 A
max.
mm		 B
±0.13
mm		 C
±0.13
mm		 D
±0.13
mm		 L
±0.13
mm		 Rec. Hole Size
+0.08
mm		 Please note!
4mm 5.39 4.78 3.58 6.35 8-25 5.4

Panel 1 - Metal HRB50 Panel 2 - PCB or Metal
Type Bottom
Mounting
Hole
+0.08
mm		 Hardness
max.		 Thickness
min.
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm		 Location
Tolerance
max.
mm		 Top
Mounting
Hole
+0.08
mm		 Hardness
max.		 Thickness
Range
mm		 Distance
Centre Hole
to Sheet Edge
min.
mm
SF.SSS 5.41 HRB 60 1.0 6.6 ±0.13 4.0 No limit 1-1.8 2.54
Sf-SSC 5.41 HRB 70 1.0 6.6 ±0.13 4.0 No limit 1-1.8 2.54
SF-SSA 5.41 HRB 50 1.0 6.6 ±0.13 4.0 No limit 1-1.8 2.54
