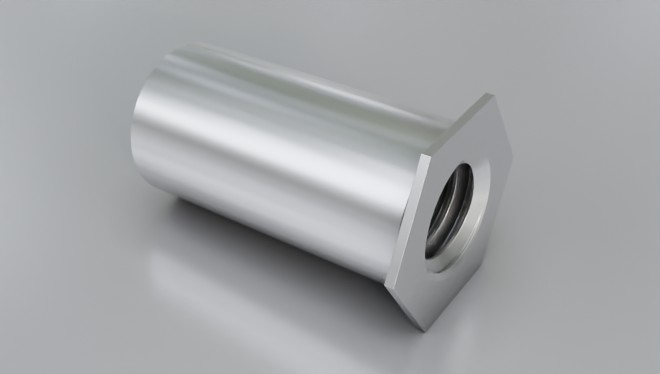

Type: SF-TSO or SF-TSOS

SF-TSO/SF-TSOS

Lengths

2/3/4/6/8/10/12/14

Material Code

Steel/zinc = SF-TSO
Stainless steel = SF-TSOS

How to order

Type + Thread + Length
Example: SF-TSO-M2.5-8 or SF-TSOS-M3-14

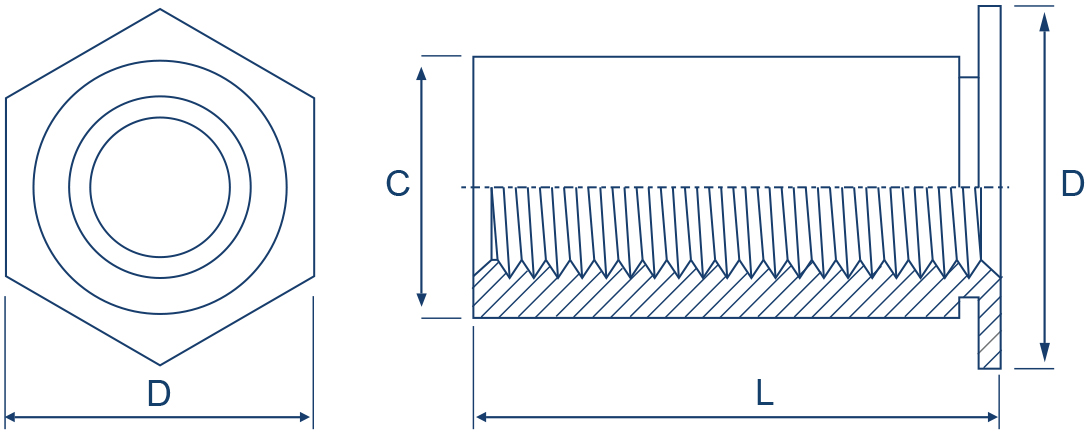

Thread C
-0.13
mm		 D
±0.25
mm

L
±0.13
mm

 Sheet Thickness
min.
mm		 Rec. Hole Size
+0.08
mm

Distance
Center Hole
to Sheet Edge
min.
mm

 Please note!
M2.5 4.2 4.8 3/4/6/8/10/14 0.63 4.22-4.30 5.8
M3 4.2 4.8 2/3/4/6/8/10/12/14 0.63 4.22-4.30 5.8
